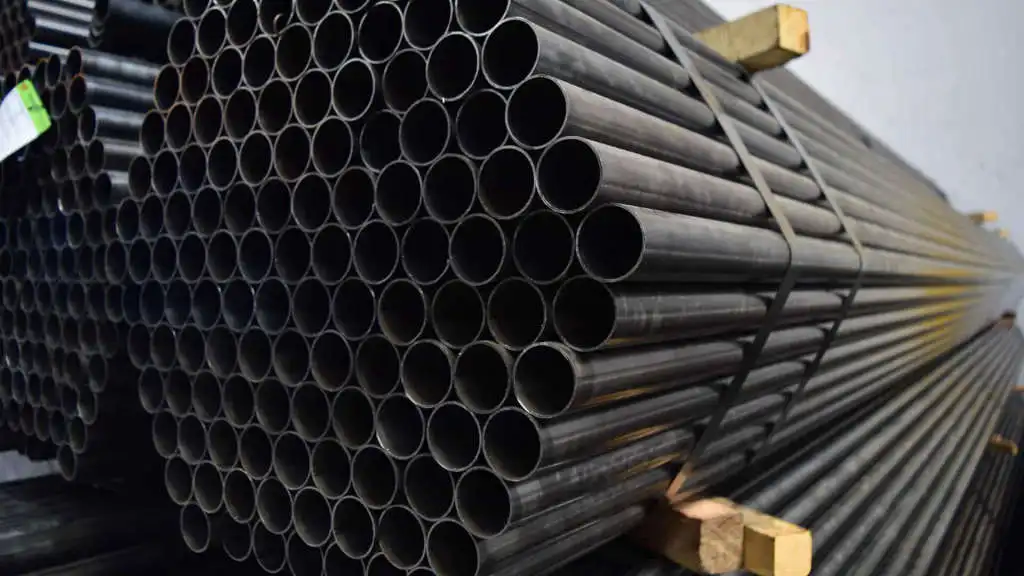

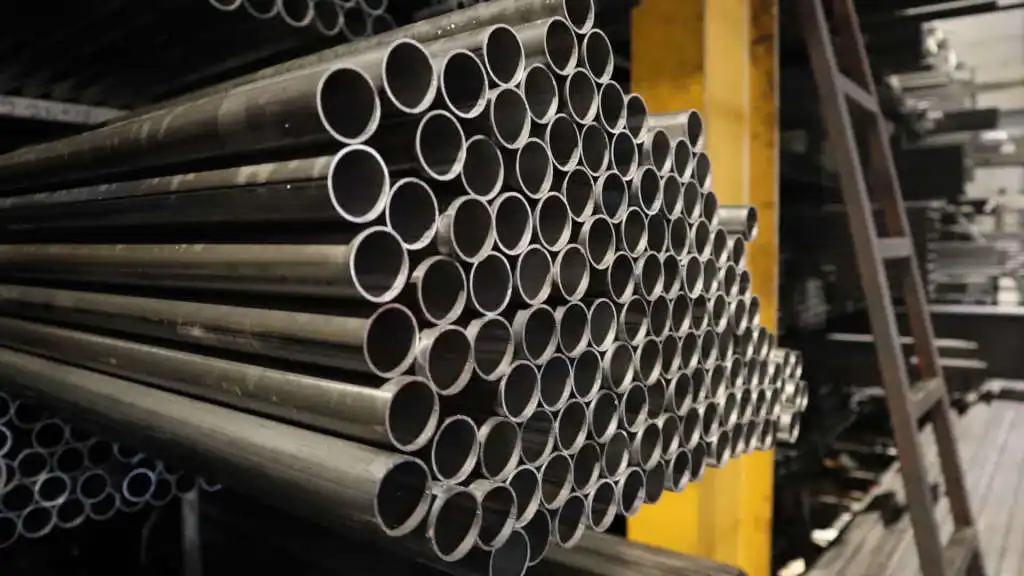

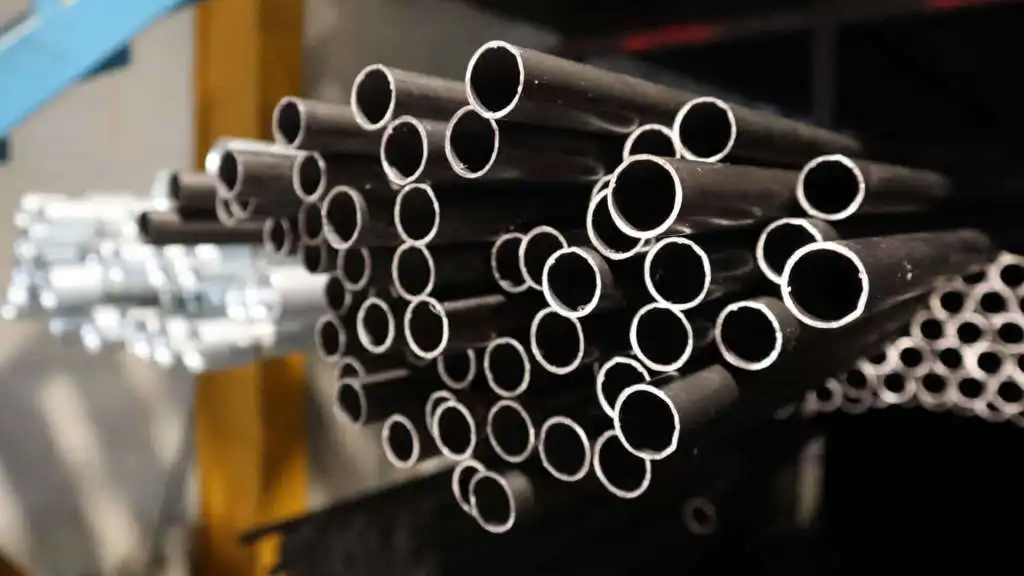

Black Flat End Pipe – HR

HOME Black Flat End Pipe – HR

Quality : S195T – S235JRH – S275J0H – S275J2H – S355J0H

Standard : TS EN 10217-1 – ISO 65 – ASTM A53 – TS EN 10255

Outer Diameter : 21.30 – 323,90 mm

Outer Diameter: 2,65 – 6.30 mm

 Length : 3,00 – 18,30 m

Kategoriler:

Black Flat End Pipe

What is Black Flat End Pipe?

Our Black Flat End Pipes; It is CE certified. Each of our pipes is subjected to leak test and eddy current (E/C) test under 50 bar pressure. It conforms to TS EN 10255+A1 Standards and is of S195T quality.

Black Flat End Pipe Specifications

EN 10255 S195T Carbon Steel Seamless Pipes Chemical Properties

Carbon

Silicon

Manganese

Phosphorus

Sulfur

from molyb

Nickel

Chromium

Copper

Other

Maksimum 0,20

–

Maksimum 1,40

0.035

0.03

–

–

–

–

–

EN 10255 S195T Mechanical Properties of Carbon Steel Seamless Pipes

Mechanical Properties

Upper Yield strength

tensile strength

Elongation

ReH min. (MPa)

Rm (MPa)

Bir min. %

195

320 ile 520 arası

20

The ovality tolerance of our black water pipes is narrow. When the pipes are brought end to end, it provides a perfect overlap along all axes. No weld runoff and no weld gaps that need to be filled in extra. A fast, comfortable and reliable pre-welding preparation is made. This simplifies butt welding. It saves labor and time, creates economy.

Black flat end pipe, water etc. used in the transmission of liquids.

Production Standards

Pipe Production Standards:

TS EN 10217-1, ISO 65, ASTM A-53, TS EN 10255

Galvanizing Standards:

TS 914, TS EN 10240, EN ISO 1461 (BS 729), ASTM A-53, A-90, NFA 49-700, UNI 5745

Threading Standards

(1/2″-6″) ISO 7/1, ANSI B.1.20.1, TS EN 10255

– Grooving (3/4″-12″)

– Conforms to Victaulic standard.

– Our products are FM certified, they can be used in fire installations.

– Our galvanized pipes are NSF certified and can be used in drinking water installations.

*Our Medium Series pipes can be used for water up to 25 bar operating pressure.

*Each pipe passes the leak test under 50 bar pressure and non-destructive testing with eddy currents (E/C).

Tolerances

Wall thickness: -12.5%

+10% (Depends on the standards.)

Weight: ± 10% (In one length of pipe, it varies according to the standard.)

± 7.5% (in a 10-ton lot, it varies according to the standard.)

Length: ± 50mm (Depends on the standard.)

Curvature: 1mm/m

Usage areas

  • In water transmission lines,
  • In the manufacture of white goods,
  • In water installations,
  • In heating installations,
  • In the construction industry,
  • It is used in building fire installation systems.

Weight Chart

Type of material

Outer Diameter

Wall Thickness

Weight of 1 Meter

İnç

mm

mm

Kg.

 1/2″Black Pipe

21,30

2,65

1,22

 3/4″Black Pipe

26,90

2,65

1,58

 1″Black Pipe

33,70

3,25

2,44

 1.1/4″Black Pipe

42,40

3,25

3,14

 1.1/2″Black Pipe

48,30

3,25

3,61

 2″Black Pipe

60,30

3,65

5,10

 2.1/2″Siyah Boru

76,10

3,65

6,51

 3″Black Pipe

88,90

4,50

8,47

 4″Black Pipe

114,30

4,50

12,10

 5″Black Pipe

139,70

4,85

16,20

 6″Black Pipe

165,10

4,85

19,20

 8″Black Pipe

219,10

5,00

26,40

 10″Black Pipe

273,00

5,60

36,90

 12″Black Pipe

323,90

6,30

49,30
