HE B


Quality : S235JR – S275JR – S355JR – ST52 – ST44 – ST37

Dimension : 100 – 1000 mm

H(Height) : 100 – 1000 mm

B (Width) : 100 – 300 mm

T (Thickness) : 6,0 – 19,0 mm

Kategoriler:

HE B Iron

What is HE B Iron?

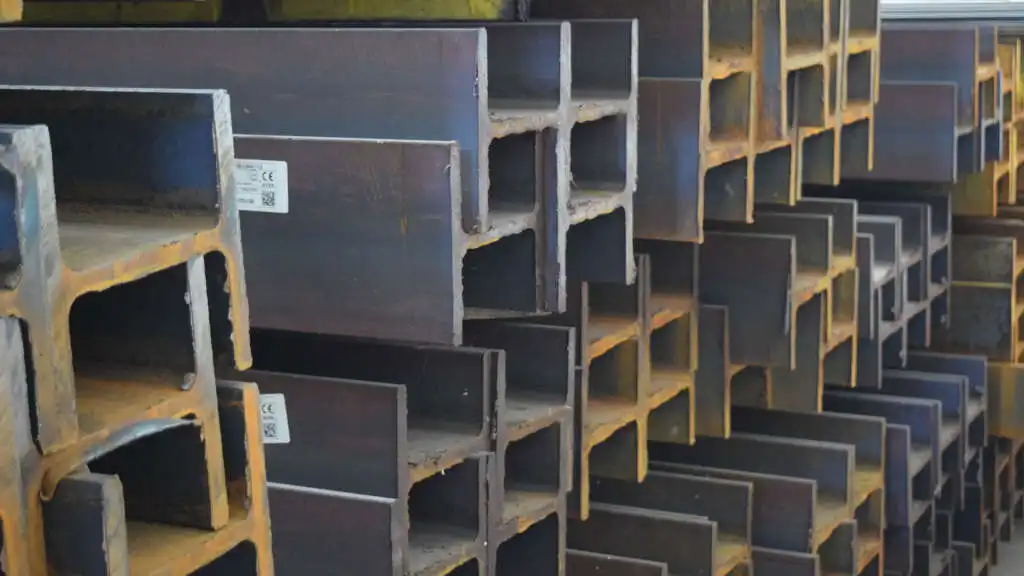

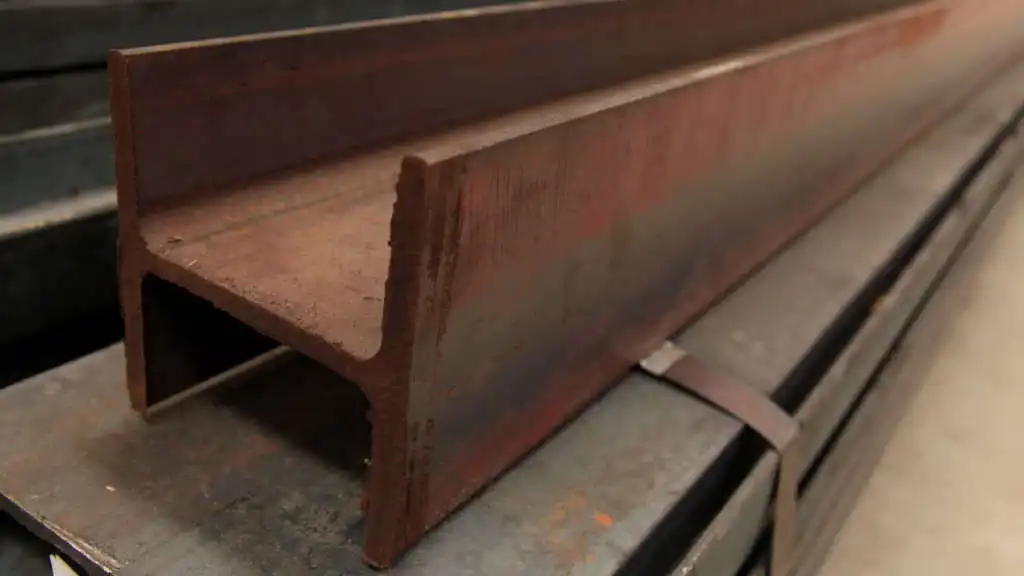

In the construction industry, HEB irons, also known as steel beams, are used as supports at the corners during the construction of buildings. Its greatest effect is that it provides the most accurate resistance in cases such as slipping, breaking, collapsing or tearing. The regions that provide this power are called the trunk. In addition, HEB irons are also resistant to bending movements. This part is called direct flange. While HEB produces irons in the most accurate way for all your projects, it provides special productions in terms of weight and size, and productions according to needs.

For steel structures of HEB iron from 100 millimeters to 1000 millimeters, 100 millimeter HEB bars have a body thickness of 6 mm, a sidewall thickness of 10 mm, a corner thickness of 12 mm and a weight of 400 kilograms/meter. Again, HEB irons, which have different weights, are among the most used profiles among the construction profiles. Thus, it offers the feature of being used safely in steel construction structures. HEB profiles are indispensable parts for structures made of steel. Since the whole structure is on the profiles in steel construction structures, the steel profiles must be quite durable and easy to use. Therefore, it is possible to use HEB profile irons in different weights and sizes by Hakan Sheet Metal and functionally use them in steel construction structures.

Usage areas

HEB structural irons are one of the irons in the profile group. Steel construction is used in almost every stage of the buildings. In addition, HEB construction iron is a type of iron that can be used in the manufacture of agricultural machinery, the automotive industry and the sub-industries of the automotive industry. The kilogram price of iron in HEB construction irons; The size of the iron can vary according to its size and can be at different prices. Used in all areas of steel structures, HEB structural irons are indispensable for steel structures.

This iron is especially preferred in Europe because of the strength it provides in steel structures. They provide ease of use and manufacturing advantage in steel roofs, steel bridges, steel mezzanines, steel buildings.

Classification Standards



ENV 1993-1-1

EN 10025-2: 2004

EN 10025-4: 2004

EN 10225:2001





lean bending y-y





Lean jam











S235

S355

S460

S235

S355

S460







HE 100 B

1

1

1

1

1

1

?

?

?

HE 120 B

1

1

1

1

1

1

?

?

?

HE 140 B

1

1

1

1

1

1

?

?

?

HE 160 B

1

1

1

1

1

1

?

?

?

HE 180 B

1

1

1

1

1

1

?

?

?

HE 200 B

1

1

1

1

1

1

?

?

?

HE 220 B

1

1

1

1

1

1

?

?

?

HE 240 B

1

1

1

1

1

1

?

?

?

HE 260 B

1

1

2

1

1

2

?

HI

HI

HE 280 B

1

1

2

1

1

2

?

HI

HI

HE 300 B

1

1

3

1

1

3

?

HI

HI

HE 320 B

1

1

2

1

1

2

?

HI

HI

HE 340 B

1

1

1

1

1

1

?

HI

HI

HE 360 B

1

1

1

1

1

1

?

HI

HI

HE 400 B

1

1

1

1

1

1

?

HI

HI

HE 450 B

1

1

1

1

1

2

?

HI

HI

HE 500 B

1

1

1

1

2

2

?

HI

HI

HE 550 B

1

1

1

1

2

3

?

HI

HI

HE 600 B

1

1

1

1

3

4

?

HI

HI

HE 650 B

1

1

1

2

3

4

?

HI

HI

HE 700 B

1

1

1

2

4

4

?

HI

HI

HE 800 B

1

1

1

3

4

4

?

HI

HI

HE 900 B

1

1

1

3

4

4

?

HI

HI

HE 1000 B

1

1

1

4

4

4

?

HI

HI

Weight Chart

Section

Dimension

G-unit

h:Height

b: Width

tw:Body Thickness

tf:Flange Thickness

r:Inside Corner Radius

1 Bar Weight

Total Length for 1 Ton

mm

weight kg/m

mm

mm

mm

mm

mm

kb/12,1m

m/ton

 HEB

100,0

20,40

100,0

100,0

6,0

10,0

12

247

49

 HEB

120,0

26,70

120,0

120,0

6,5

11,0

12

323

37

 HEB

140,0

33,70

140,0

140,0

7,0

12,0

12

408

30

 HEB

160,0

42,60

160,0

160,0

8,0

130,0

15

515

25

 HEB

180,0

51,20

180,0

180,0

8,5

14,0

15

620

20

 HEB

200,0

61,50

200,0

200,0

9,0

15,0

18

742

16

 HEB

220,0

71,50

220,0

220,0

9,5

16,0

18

865

14

 HEB

240,0

83,20

240,0

240,0

10,0

17,0

21

1007

12

 HEB

260,0

93,00

260,0

260,0

10,0

17,5

24

1125

11

 HEB

280,0

103,00

280,0

280,0

10,5

18,0

24

1246

10

 HEB

300,0

117,00

300,0

300,0

11,0

19,0

27

1416

9

 HEB

320,0

127,00

320,0

300,0

11,5

20,5

27

1537

8

 HEB

340,0

134,00

340,0

300,0

12,0

21,5

27

1361

7

 HEB

360,0

142,00

360,0

300,0

12,5

22,5

27

1718

7

 HEB

400,0

155,00

400,0

300,0

13,5

24,0

27

1876

6

 HEB

450,0

171,00

450,0

300,0

14,0

26,0

27

2069

6

 HEB

500,0

187,00

500,0

300,0

14,5

28,0

27

2263

5

 HEB

550,0

199,00

550,0

300,0

15,0

29,0

27

2408

5

 HEB

600,0

212,00

600,0

300,0

15,5

30,0

27

2565

5

 HEB

650,0

225,00

650,0

300,0

16,0

31,0

27

2723

4

 HEB

700,0

241,00

700,0

300,0

17,0

32,0

27

2916

4

 HEB

800,0

262,00

800,0

300,0

17,5

33,0

30

3170

4

 HEB

900,0

291,00

900,0

300,0

18,5

35,0

30

3521

3

 HEB

1000,0

314,00

1000,0

300,0

19,0

36,0

30

3799

3
