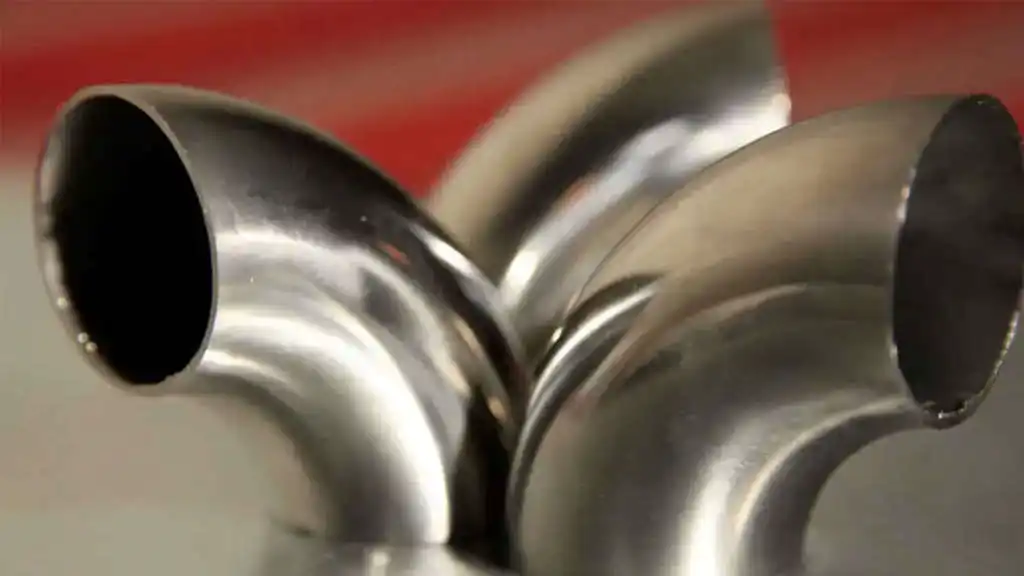

Patent Elbow
What is Patent Elbow?
Patent elbow is the connection equipment used to make turns at 90 or 45 degree angles in the turns of iron pipes.
There are seamed and unstitched varieties.

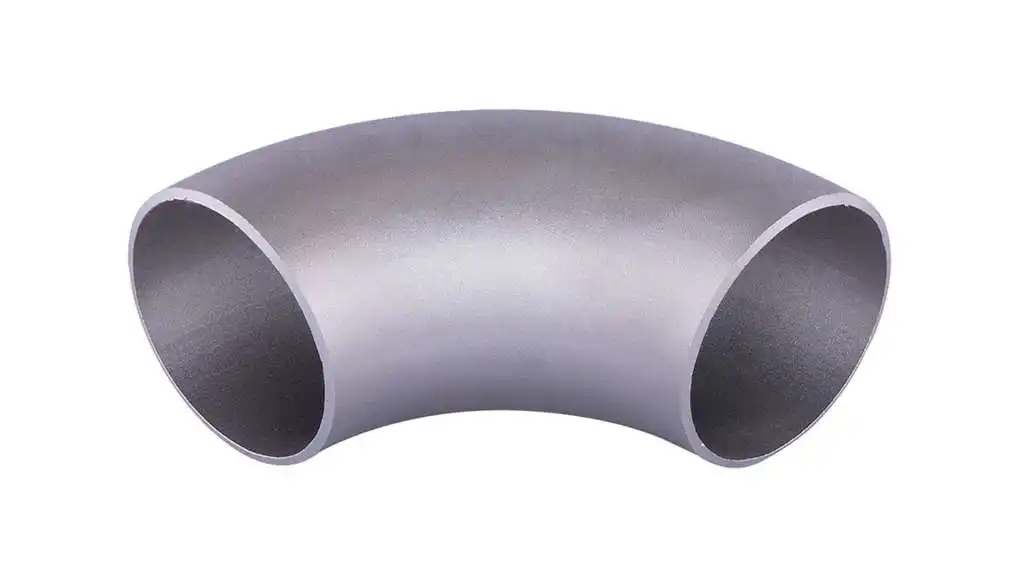

Patent Elbow
Standard : DIN 2605
Outer Diameter : 26,9 – 251 mm
Meat Thickness: 2,30 – 12,70 mm
Diameter: 28,50 – 1470 mm
Elbow Height: 42 – 1008 mm
Areas of Usage
Weld-on installations are also used. teeth, grooves, sockets, etc. at the ends. It is a type of fitting that is welded between two pipes in order to make 45, 90 and 180 degree turns on the pipes that are not present.
Weight Chart
|
Ø |
Ø |
Wall Thickness |
Average |
Tolerance |
Elbow |
Average |
Tolerance |
Weight kg |
|
3/4″ |
26,9 |
2,9 |
28,5 |
± 2,5 |
42 |
57 |
± 5
|
0,08 |
|
1″ |
33,7 |
3,6 |
38 |
55 |
76 |
0,16 |
||
|
1 1/4″ |
42,4 |
3,6 |
47,5 |
69 |
95 |
0,26 |
||
|
|
44,5 |
3,6 |
51 |
73 |
102 |
0,29 |
||
|
1 1/2″ |
48,3 |
3,6 |
57 |
± 3 |
81 |
114 |
± 6
|
0,36 |
|
|
51 |
– |
63,5 |
88 |
127 |
– |
||
|
|
57 |
4 |
72 |
100 |
144 |
0,60 |
||
|
2″ |
60,3 |
4 |
76 |
106 |
152 |
0,67 |
||
|
|
63,5 |
4 |
82,5 |
114 |
165 |
0,77 |
||
|
|
70 |
– |
92 |
127 |
184 |
– |
||
|
2 1/2″ |
76,1 |
5,6 |
95 |
133 |
190 |
1,45 |
||
|
|
82,5 |
– |
107,5 |
149 |
215 |
– |
||
|
3″ |
88,9 |
5,6 |
114,5 |
159 |
229 |
2,07 |
||
|
|
101,6 |
5,6 |
133,5 |
184 |
267 |
2,77 |
||
|
|
108 |
6,3 |
142,5 |
196 |
285 |
3,53 |
||
|
4″ |
114,3 |
6,3 |
152,5 |
210 |
305 |
4,02 |
||
|
|
133 |
6,3 |
181 |
247 |
362 |
5,62 |
||
|
5″ |
139,7 |
– |
190,5 |
± 4 |
260 |
381 |
± 8 |
– |
|
|
159 |
7,1 |
216 |
294 |
432 |
9,01 |
||
|
6″ |
168,3 |
7,1 |
228,5 |
313 |
457 |
10,2 |
||
|
8″ |
219,1 |
7,1 |
305 |
± 5 |
415 |
610 |
± 10 |
15 |
|
10″ |
273 |
10 |
381 |
517 |
762 |
38,9 |
||
|
12″ |
323,9 |
10 |
457 |
± 10
|
619 |
914 |
± 20 |
55,5 |
|
14″ |
355,6 |
10 |
533,5 |
711 |
1067 |
71,5 |
||
|
16″ |
406,4 |
10 |
609,5 |
813 |
1219 |
93,6 |
||
|
18″ |
457,2 |
– |
686 |
± 15 |
914 |
1372 |
± 30 |
– |
|
20″ |
508 |
– |
762 |
± 35 |
1016 |
1524 |
± 70 |
– |
