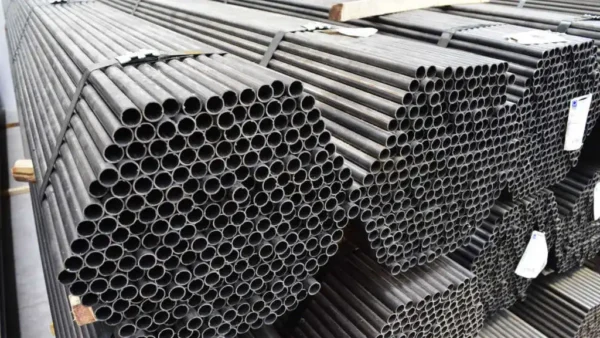

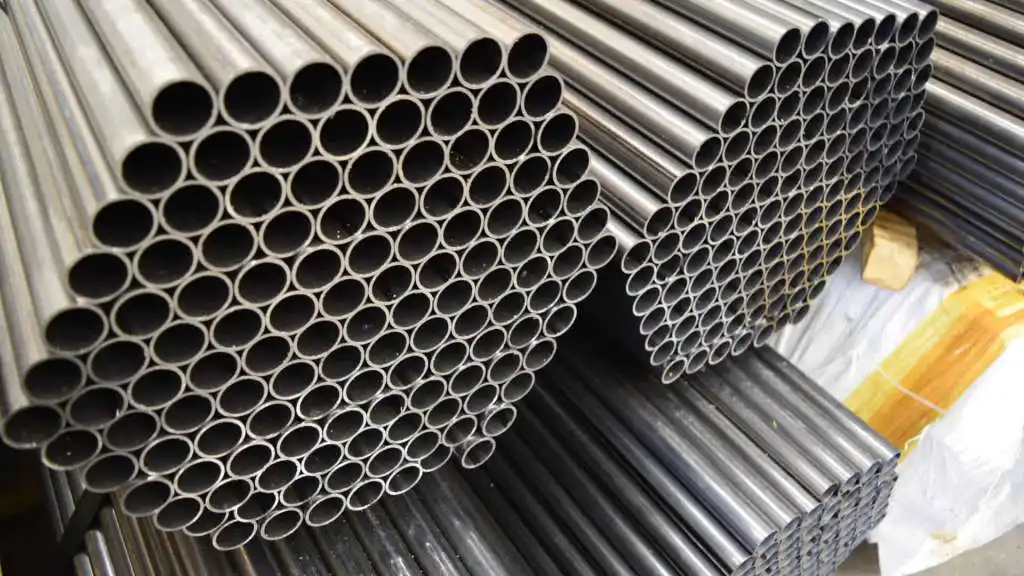

Scaffolding Pipes – HR

HOME Scaffolding Pipes – HR

Quality: S235JRH – S275J0H – S275J2H – S355J0H

Standard : TS EN 10305-3 – TS EN 10305-5

Outer Diameter: 13,0 – 339,7 mm

Wall Thickness : 0,90 – 13,0 mm

Length : 0,7-14 m

Kategoriler:

Scaffolding Pipe

What is Scaffolding Pipe?

Scaffolding pipes are components used in the formwork system, steel constructions, and the agricultural sector. Taking into account the floor loads of this system, ridge and grid spacing and telescopic pipe erection distances can be adjusted.

Scaffolding pipes, which have different names such as “telescopic scaffolds, telescopic poles, telescopic poles, iron poles, construction poles, telescopic poles and iron poles”, have different usage patterns. Scaffolding pipes are supported by telescopic pipe struts of 300 – 350 – 400 cm and three legs called tripods.

Scaffolding Pipes meet TS EN 1065 quality standards. Pipes can be used in harmony with other systems. In addition to the pillars, which are the main elements of the system, auxiliary support elements such as Tripod, U Head and Double Way Head are used.

High quality steel bands of DC01 (DIN EN 10130), S185, S235JRH/J0H/J2H, S275J0H/J2H, S355J0H/J2H (DIN EN 10025) quality steel bands in accordance with DIN 2394, TS EN 10305-3, TS EN 10219-2 norms It is manufactured with frequency source (ERW).

Usage areas

Adjustable scaffolds are used in residences, villas, business and shopping centers, hospitals and health facilities. The system can be easily installed and dismantled. Apart from that, it can be adjusted at different heights and can be planned according to the characteristics of all settlements.

Production Standards and Steel Grades

EN 39 (TS 8481 EN 39)

S 235 GT

EN 10219 (TS EN 10219) (CE)

S235JRH, S275J0H, S275J2H, S 355J0H,
S355J2H, S355K2H, S275NH, S275NLH,
S275MH, S275MLH, S355NH, S355NLH,
S355MH, S355MLH, S420MH, S420MLH.

Mechanical Properties of EN 10210 S355J0H Steel Pipes

min. Yield Strength Reh (Mpa)

Tensile Strength Rm (MPa)

Elongation % min.

t≤ 16mm

> 16 ≤ 40 mm

> 40 × 63 mm

> 63 ≤ 80 mm

> 80 ≤ 100 mm

> 100 ≤ 120 mm

t <3 mm

> 80 ≤ 100 mm

> 100 ≤ 120 mm

t≤ 40mm

355

345

335

325

315

295

510-680

470-630

450-600

22

Chemical Composition

Carbon

Silicone max.

Manganese max.

Phosphorus max.

Sulfur max.

Nitrogen max.

0,22

0,55

1.60

0,035

0,035

0,009
