Kalite : EN 10163
Yükseklik : 120 – 600 mm
Genişlik : 42 – 155 mm

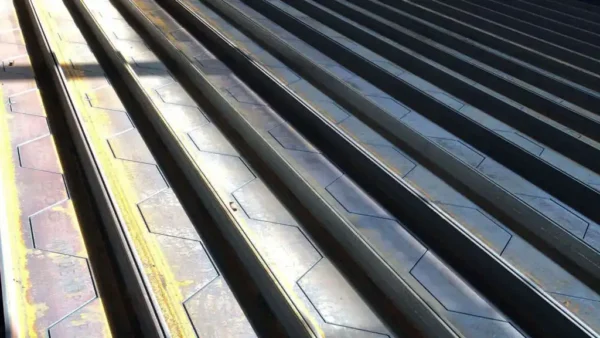

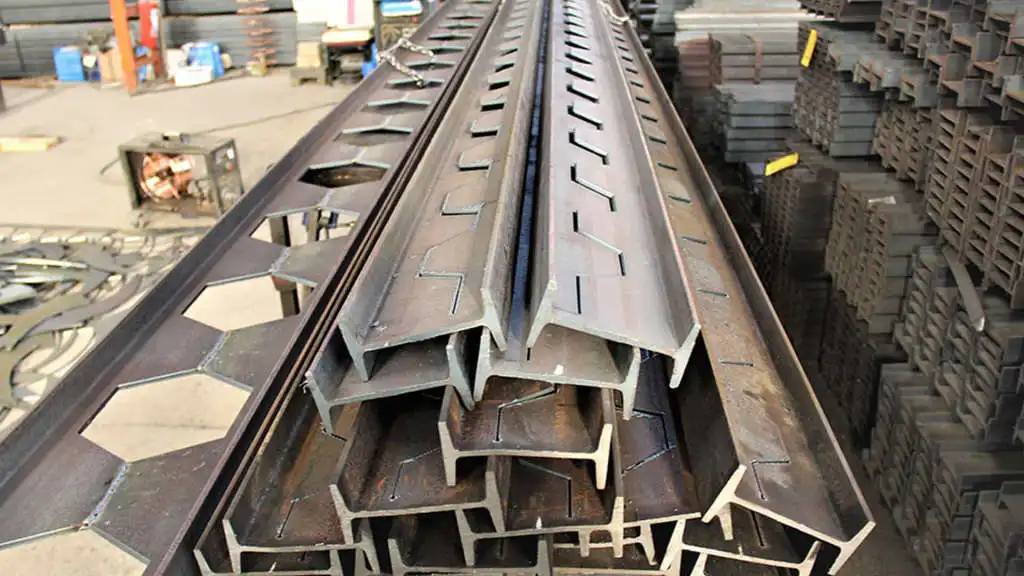

Petek kirişler sıcak haddelenmiş H ve I tipi profillerin gövdeleri boyunca zig-zaglı olarak kesilmesi ile elde edilen iki parçanın kaydırılıp kaynaklarla yeniden birleştirilerek imal edilen kirişlerdir.
Ayrıca, gövdesinde sekizgen açıklıklara neden olan daha derin bir mazgallı kiriş vererek, kare veya dikdörtgen plakaları kesilen yarılar arasına kaynaklamak da mümkündür.
|
Standart NPI |
Petek Kiriş |
Yükseklik |
Genişlik |
Kg/m |
|
80 |
120 |
120 |
42 |
5,94 |
|
100 |
140 |
140 |
50 |
8,34 |
|
120 |
180 |
180 |
58 |
11,10 |
|
140 |
200 |
200 |
66 |
14,30 |
|
160 |
245 |
245 |
74 |
17,90 |
|
180 |
265 |
265 |
82 |
21,90 |
|
200 |
305 |
305 |
90 |
26,20 |
|
220 |
325 |
325 |
98 |
31,10 |
|
240 |
320 |
320 |
106 |
36,00 |
|
240 |
360 |
360 |
106 |
36,00 |
|
260 |
360 |
360 |
113 |
41,60 |
|
260 |
390 |
390 |
113 |
41,60 |
|
280 |
400 |
400 |
119 |
47,60 |
|
280 |
420 |
420 |
119 |
47,60 |
|
300 |
420 |
420 |
125 |
53,80 |
|
300 |
450 |
450 |
125 |
53,80 |
|
320 |
460 |
460 |
131 |
60,70 |
|
320 |
480 |
480 |
131 |
60,70 |
|
340 |
500 |
500 |
137 |
67,70 |
|
340 |
510 |
510 |
137 |
67,70 |
|
360 |
500 |
500 |
143 |
75,50 |
|
360 |
540 |
540 |
143 |
75,50 |
|
380 |
540 |
540 |
149 |
83,60 |
|
380 |
570 |
570 |
149 |
83,60 |
|
400 |
580 |
580 |
155 |
92,00 |
|
400 |
600 |
600 |
155 |
92,00 |
|
Kesit |
NORMAL KESİT ÖZELLİKLERİ |
PETEK KİRİŞ KESİT ÖZELLİKLERİ |
||||||||||||||
|
G kg/m |
h mm |
b mm |
tw mm |
tf mm |
r mm |
A cm2 |
Iy cm4 |
Wy cm3 |
H mm |
Aa cm2 |
Ab cm2 |
Iya cm4 |
Wya cm3 |
Iyb cm4 |
Wyb cm3 |
|
|
IPE 100 |
8,1 |
100 |
55 |
4,1 |
5,7 |
7 |
10,3 |
171 |
34 |
150 |
12,4 |
8,3 |
437 |
58 |
403 |
54 |
|
IPE 120 |
10,4 |
120 |
64 |
4,4 |
6,3 |
7 |
13,2 |
318 |
53 |
180 |
15,9 |
10,6 |
809 |
90 |
746 |
83 |
|
IPE 140 |
12,9 |
140 |
73 |
4,7 |
6,9 |
7 |
16,4 |
541 |
77 |
210 |
19,7 |
13,1 |
1374 |
131 |
1267 |
121 |
|
IPE 160 |
15,8 |
160 |
82 |
5,0 |
7,4 |
9 |
20,1 |
869 |
109 |
240 |
24,1 |
16,1 |
2203 |
184 |
2032 |
169 |
|
IPE 180 |
18,8 |
180 |
91 |
5,3 |
8,0 |
9 |
24,0 |
1317 |
146 |
270 |
28,7 |
19,2 |
3332 |
247 |
3074 |
228 |
|
IPE 200 |
22,4 |
200 |
100 |
5,6 |
8,5 |
12 |
28,5 |
1943 |
194 |
300 |
34,1 |
22,9 |
4908 |
327 |
4535 |
302 |
|
IPE 220 |
26,2 |
220 |
110 |
5,9 |
9,2 |
12 |
33,4 |
2772 |
252 |
330 |
39,9 |
26,9 |
6986 |
423 |
6463 |
392 |
|
IPE 240 |
30,7 |
240 |
120 |
6,2 |
9,8 |
15 |
39,1 |
3892 |
324 |
360 |
46,6 |
31,7 |
9789 |
544 |
9075 |
504 |
|
IPE 270 |
36,1 |
270 |
135 |
6,6 |
10,2 |
15 |
46,0 |
5790 |
429 |
405 |
54,9 |
37,0 |
14552 |
719 |
13470 |
665 |
|
IPE 300 |
42,2 |
300 |
150 |
7,1 |
10,7 |
15 |
53,8 |
8356 |
557 |
450 |
64,5 |
43,2 |
21008 |
934 |
19411 |
863 |
|
IPE 330 |
49,1 |
330 |
160 |
7,5 |
11,5 |
18 |
62,6 |
11767 |
713 |
495 |
75,0 |
50,2 |
29580 |
1195 |
27334 |
1104 |
|
IPE 360 |
57,1 |
360 |
170 |
8,0 |
12,7 |
18 |
72,7 |
16266 |
904 |
540 |
87,1 |
58,3 |
40890 |
1514 |
37780 |
1399 |
|
IPE 400 |
66,3 |
400 |
180 |
8,6 |
13,5 |
21 |
84,5 |
23128 |
1156 |
600 |
101,7 |
67,3 |
58291 |
1943 |
53704 |
1790 |
|
IPE 450 |
77,6 |
450 |
190 |
9,4 |
14,6 |
21 |
98,8 |
33743 |
1500 |
675 |
120,0 |
77,7 |
85433 |
2531 |
78294 |
2320 |
|
IPE 500 |
90,7 |
500 |
200 |
10,2 |
16,0 |
21 |
115,5 |
48199 |
1928 |
750 |
141,0 |
90,0 |
122430 |
3265 |
111805 |
2981 |
|
IPE550 |
106,0 |
550 |
210 |
11,1 |
17,2 |
24 |
134,4 |
67116 |
2441 |
825 |
164,9 |
103,9 |
171096 |
4148 |
155706 |
3775 |
|
IPE 600 |
122,0 |
600 |
220 |
12,0 |
19,0 |
24 |
156,0 |
92083 |
3069 |
900 |
192,0 |
120,0 |
235252 |
5228 |
213652 |
4748 |
|
IPE 750 x 147 |
147,0 |
753 |
265 |
13,2 |
17,0 |
17 |
187,5 |
166064 |
4411 |
1130 |
237,2 |
137,8 |
431220 |
7632 |
384255 |
6801 |
|
Kesit |
NORMAL KESİT ÖZELLİKLERİ |
PETEK K |
RİŞ KESİT ÖZELLİKLERİ |
|||||||||||||
|
G kg/m |
h mm |
b mm |
tw mm |
tf mm |
r mm |
A cm2 |
Iy cm4 |
Wy cm3 |
H mm |
Aa cm2 |
Ab cm2 |
Iya cm4 |
Wya cm3 |
Iyb cm4 |
Wyb cm3 |
|
|
HE 100 M |
41,8 |
120 |
106 |
12,0 |
20,0 |
12 |
53,2 |
1143 |
190 |
180 |
60,4 |
46,0 |
3058 |
340 |
2885 |
321 |
|
HE 120 M |
52,1 |
140 |
126 |
12,5 |
21,0 |
12 |
66,4 |
2018 |
288 |
210 |
75,2 |
57,7 |
5321 |
507 |
5035 |
480 |
|
HE 140 M |
63,2 |
160 |
146 |
13,0 |
22,0 |
12 |
80,6 |
3291 |
411 |
240 |
91,0 |
70,2 |
8586 |
716 |
8143 |
679 |
|
HE 160 M |
76,2 |
180 |
166 |
14,0 |
23,0 |
15 |
97,1 |
5098 |
566 |
270 |
109,7 |
84,5 |
13220 |
979 |
12539 |
929 |
|
HE 180 M |
88,9 |
200 |
186 |
14,5 |
24,0 |
15 |
113,3 |
7483 |
748 |
300 |
127,8 |
98,8 |
19270 |
1285 |
18303 |
1220 |
|
HE 200 M |
103,0 |
220 |
206 |
15,0 |
25,0 |
18 |
131,3 |
10642 |
967 |
330 |
147,8 |
114,8 |
27266 |
1652 |
25935 |
1572 |
|
HE 220 M |
117,0 |
240 |
226 |
15,5 |
26,0 |
18 |
149,4 |
14605 |
1217 |
360 |
168,0 |
130,8 |
37241 |
2069 |
35456 |
1970 |
|
HE 240 M |
157,0 |
270 |
248 |
18,0 |
32,0 |
21 |
199,6 |
24289 |
1799 |
405 |
223,9 |
175,3 |
62331 |
3078 |
59378 |
2932 |
|
HE 260 M |
172,0 |
290 |
268 |
18,0 |
32,5 |
24 |
219,6 |
31307 |
2159 |
435 |
245,7 |
193,5 |
79902 |
3674 |
76243 |
3505 |
|
HE 280 M |
189,0 |
310 |
288 |
18,5 |
33,0 |
24 |
240,2 |
39547 |
2551 |
465 |
268,9 |
211,5 |
100514 |
4323 |
95921 |
4126 |
|
HE 300 M |
238,0 |
340 |
310 |
21,0 |
39,0 |
27 |
303,1 |
59201 |
3482 |
510 |
338,8 |
267,4 |
151279 |
5932 |
144400 |
5663 |
|
HE 320 M |
245,0 |
359 |
309 |
21,0 |
40,0 |
27 |
312,0 |
68135 |
3796 |
539 |
349,7 |
274,3 |
173891 |
6458 |
165794 |
6158 |
|
HE 340 M |
248,0 |
377 |
309 |
21,0 |
40,0 |
27 |
315,8 |
76372 |
4052 |
566 |
355,4 |
276,2 |
194525 |
6880 |
185148 |
6548 |
|
HE 360 M |
250,0 |
395 |
308 |
21,0 |
40,0 |
27 |
318,8 |
84867 |
4297 |
593 |
360,3 |
277,3 |
215843 |
7286 |
205058 |
6922 |
|
HE 400 M |
256,0 |
432 |
307 |
21,0 |
40,0 |
27 |
325,8 |
104119 |
4820 |
648 |
371,2 |
280,4 |
264207 |
8155 |
250098 |
7719 |
|
HE 450 M |
263,0 |
478 |
307 |
21,0 |
40,0 |
27 |
335,4 |
131484 |
5501 |
717 |
385,6 |
285,2 |
333086 |
9291 |
313973 |
8758 |
|
HE 500 M |
270,0 |
524 |
306 |
21,0 |
40,0 |
27 |
344,3 |
161929 |
6180 |
786 |
399,3 |
289,3 |
410031 |
10433 |
384852 |
9793 |
|
HE 550 M |
278,0 |
572 |
306 |
21,0 |
40,0 |
27 |
354,4 |
197984 |
6923 |
858 |
414,5 |
294,3 |
501419 |
11688 |
468668 |
10925 |
|
HE 600 M |
285,0 |
620 |
305 |
21,0 |
40,0 |
27 |
363,7 |
237447 |
7660 |
930 |
428,8 |
298,6 |
601964 |
12945 |
560257 |
12049 |
|
HE 650 M |
293,0 |
668 |
305 |
21,0 |
40,0 |
27 |
373,7 |
281667 |
8433 |
1002 |
443,8 |
303,6 |
714962 |
14271 |
662799 |
13230 |
|
HE 700 M |
301,0 |
716 |
304 |
21,0 |
40,0 |
27 |
383,0 |
329278 |
9198 |
1074 |
458,2 |
307,8 |
837326 |
15593 |
773090 |
14396 |
|
HE 800 M |
317,0 |
814 |
303 |
21,0 |
40,0 |
30 |
404,3 |
442598 |
10875 |
1221 |
489,8 |
318,8 |
1130061 |
18510 |
1035674 |
16964 |
|
HE 900 M |
333,0 |
910 |
302 |
21,0 |
40,0 |
30 |
423,6 |
570434 |
12537 |
1365 |
519,2 |
328,1 |
1463271 |
21440 |
1331396 |
19508 |
|
HE 1000 M |
349,0 |
1008 |
302 |
21,0 |
40,0 |
30 |
444,2 |
722299 |
14331 |
1512 |
550,0 |
338,4 |
1861816 |
24627 |
1682583 |
22256 |
|
Kesit |
NORMAL KESİT ÖZELLİKLERİ |
PETEK KİRİŞ KESİT ÖZELLİKLERİ |
||||||||||||||
|
G kg/m |
h mm |
b mm |
tw mm |
tf mm |
r mm |
A cm2 |
Iy cm4 |
Wy cm3 |
H mm |
Aa cm2 |
Ab cm2 |
Iya cm4 |
Wya cm3 |
Iyb cm4 |
Wyb cm3 |
|
|
HE 100 B |
20,4 |
100 |
100 |
6,0 |
10,0 |
12 |
26,0 |
450 |
90 |
150 |
29,0 |
23,0 |
1140 |
152 |
1090 |
145 |
|
HE 120 B |
26,7 |
120 |
120 |
6,5 |
11,0 |
12 |
34,0 |
864 |
144 |
180 |
37,9 |
30,1 |
2173 |
241 |
2080 |
231 |
|
HE 140 B |
33,7 |
140 |
140 |
7,0 |
12,0 |
12 |
43,0 |
1509 |
216 |
210 |
47,9 |
38,1 |
3773 |
359 |
3613 |
344 |
|
HE 160 B |
42,6 |
160 |
160 |
8,0 |
13,0 |
15 |
54,3 |
2492 |
311 |
240 |
60,7 |
47,9 |
6226 |
519 |
5953 |
496 |
|
HE 180 B |
51,2 |
180 |
180 |
8,5 |
14,0 |
15 |
65,3 |
3831 |
426 |
270 |
72,9 |
57,6 |
9537 |
706 |
9124 |
676 |
|
HE 200 B |
61,3 |
200 |
200 |
9,0 |
15,0 |
18 |
78,1 |
5696 |
570 |
300 |
87,1 |
69,1 |
14149 |
943 |
13549 |
903 |
|
HE 220 B |
71,5 |
220 |
220 |
9,5 |
16,0 |
18 |
91,0 |
8091 |
736 |
330 |
101,5 |
80,6 |
20048 |
1215 |
19205 |
1164 |
|
HE 240 B |
83,2 |
240 |
240 |
10,0 |
17,0 |
21 |
106,0 |
11259 |
938 |
360 |
118,0 |
94,0 |
27857 |
1548 |
26705 |
1484 |
|
HE 260 B |
93,0 |
260 |
260 |
10,0 |
17,5 |
24 |
118,4 |
14919 |
1148 |
390 |
131,4 |
105,4 |
36785 |
1886 |
35320 |
1811 |
|
HE 280 B |
103,0 |
280 |
280 |
10,5 |
18,0 |
24 |
131,4 |
19270 |
1376 |
420 |
146,1 |
116,7 |
47429 |
2259 |
45508 |
2167 |
|
HE 300 B |
117,0 |
300 |
300 |
11,0 |
19,0 |
27 |
149,1 |
25166 |
1678 |
450 |
165,6 |
132,6 |
61891 |
2751 |
59416 |
2641 |
|
HE 320 B |
127,0 |
320 |
300 |
11,5 |
20,5 |
27 |
161,3 |
30824 |
1926 |
480 |
179,7 |
142,9 |
75930 |
3164 |
72790 |
3033 |
|
HE 340 B |
134,0 |
340 |
300 |
12,0 |
21,5 |
27 |
170,9 |
36656 |
2156 |
510 |
191,3 |
150,5 |
90433 |
3546 |
86502 |
3392 |
|
HE 360 B |
142,0 |
360 |
300 |
12,5 |
22,5 |
27 |
180,6 |
43193 |
2400 |
540 |
203,1 |
158,1 |
106726 |
3953 |
101866 |
3773 |
|
HE 400 B |
155,0 |
400 |
300 |
13,5 |
24,0 |
27 |
197,8 |
57680 |
2884 |
600 |
224,8 |
170,8 |
142993 |
4766 |
135793 |
4526 |
|
HE 450 B |
171,0 |
450 |
300 |
14,0 |
26,0 |
27 |
218,0 |
79888 |
3551 |
675 |
249,5 |
186,5 |
198408 |
5879 |
187776 |
5564 |
|
HE 500 B |
187,0 |
500 |
300 |
14,5 |
28,0 |
27 |
238,6 |
107176 |
4287 |
750 |
274,9 |
202,4 |
266715 |
7112 |
251611 |
6710 |
|
HE 550 B |
199,0 |
550 |
300 |
15,0 |
29,0 |
27 |
254,1 |
136691 |
4971 |
825 |
295,4 |
212,9 |
341065 |
8268 |
320268 |
7764 |
|
HE 600 B |
212,0 |
600 |
300 |
15,5 |
30,0 |
27 |
270,0 |
171041 |
5701 |
900 |
316,5 |
223,5 |
428023 |
9512 |
400123 |
8892 |
|
HE 650 B |
225,0 |
650 |
300 |
16,0 |
31,0 |
27 |
286,3 |
210616 |
6480 |
975 |
338,3 |
234,3 |
528700 |
10845 |
492084 |
10094 |
|
HE 700 B |
241,0 |
700 |
300 |
17,0 |
32,0 |
27 |
306,4 |
256888 |
7340 |
1050 |
365,9 |
246,9 |
648240 |
12347 |
599648 |
11422 |
|
HE 800 B |
262,0 |
800 |
300 |
17,5 |
33,0 |
30 |
334,2 |
359083 |
8977 |
1200 |
404,2 |
264,2 |
911235 |
15187 |
836569 |
13943 |
|
HE 900 B |
291,0 |
900 |
300 |
18,5 |
35,0 |
30 |
371,3 |
494065 |
10979 |
1350 |
454,6 |
288,1 |
1262356 |
18702 |
1149968 |
17037 |
|
HE 1000 B |
314,0 |
1000 |
300 |
19,0 |
36,0 |
30 |
400,0 |
644748 |
12895 |
1500 |
495,0 |
305,0 |
1657324 |
22098 |
1498991 |
19987 |
|
Kesit |
NORMAL KESİT ÖZELLİKLERİ |
PETEK KİRİŞ KESİT ÖZELLİKLERİ |
||||||||||||||
|
G kg/m |
h mm |
b mm |
tw mm |
tf mm |
r mm |
A cm2 |
Iy cm4 |
Wy cm3 |
H mm |
Aa cm2 |
Ab cm2 |
Iya cm4 |
Wya cm3 |
Iyb cm4 |
Wyb cm3 |
|
|
HE 100 A |
16,7 |
96 |
100 |
5,0 |
8,0 |
12 |
21,2 |
349 |
73 |
144 |
23,6 |
18,8 |
875 |
121 |
838 |
116 |
|
HE 120 A |
19,9 |
114 |
120 |
5,0 |
8,0 |
12 |
25,3 |
606 |
106 |
171 |
28,2 |
22,5 |
1501 |
176 |
1439 |
168 |
|
HE 140 A |
24,7 |
133 |
140 |
5,5 |
8,5 |
12 |
31,4 |
1033 |
155 |
200 |
35,1 |
27,8 |
2562 |
256 |
2454 |
245 |
|
HE 160 A |
30,4 |
152 |
160 |
6,0 |
9,0 |
15 |
38,8 |
1673 |
220 |
228 |
43,3 |
34,2 |
4118 |
361 |
3942 |
346 |
|
HE 180 A |
35,5 |
171 |
180 |
6,0 |
9,5 |
15 |
45,3 |
2510 |
294 |
257 |
50,4 |
40,1 |
6173 |
480 |
5923 |
461 |
|
HE 200 A |
42,3 |
190 |
200 |
6,5 |
10,0 |
18 |
53,8 |
3692 |
389 |
285 |
60,0 |
47,7 |
9033 |
634 |
8662 |
608 |
|
HE 220 A |
50,5 |
210 |
220 |
7,0 |
11,0 |
18 |
64,3 |
5410 |
515 |
315 |
71,7 |
57,0 |
13219 |
839 |
12679 |
805 |
|
HE 240 A |
60,3 |
230 |
240 |
7,5 |
12,0 |
21 |
76,8 |
7763 |
675 |
345 |
85,5 |
68,2 |
18962 |
1099 |
18201 |
1055 |
|
HE 260 A |
68,2 |
250 |
260 |
7,5 |
12,5 |
24 |
86,8 |
10455 |
836 |
375 |
96,2 |
77,4 |
25466 |
1358 |
24489 |
1306 |
|
HE 280 A |
76,4 |
270 |
280 |
8,0 |
13,0 |
24 |
97,3 |
13673 |
1013 |
405 |
108,1 |
86,5 |
33284 |
1644 |
31972 |
1579 |
|
HE 300 A |
88,3 |
290 |
300 |
8,5 |
14,0 |
27 |
112,5 |
18263 |
1260 |
435 |
124,8 |
100,2 |
44452 |
2044 |
42724 |
1964 |
|
HE 320 A |
97,6 |
310 |
300 |
9,0 |
15,5 |
27 |
124,4 |
22929 |
1479 |
465 |
138,4 |
110,5 |
55913 |
2405 |
53679 |
2309 |
|
HE 340 A |
105,0 |
330 |
300 |
9,5 |
16,5 |
27 |
133,5 |
27693 |
1678 |
495 |
149,2 |
117,8 |
67666 |
2734 |
64821 |
2619 |
|
HE 360 A |
112,0 |
350 |
300 |
10,0 |
17,5 |
27 |
142,8 |
33090 |
1891 |
525 |
160,3 |
125,3 |
81015 |
3086 |
77442 |
2950 |
|
HE 400 A |
125,0 |
390 |
300 |
11,0 |
19,0 |
27 |
159,0 |
45069 |
2311 |
585 |
180,5 |
137,6 |
110817 |
3789 |
105379 |
3603 |
|
HE 450 A |
140,0 |
440 |
300 |
11,5 |
21,0 |
27 |
178,0 |
63722 |
2896 |
660 |
203,3 |
152,7 |
157032 |
4759 |
148869 |
4511 |
|
HE 500 A |
155,0 |
490 |
300 |
12,0 |
23,0 |
27 |
197,5 |
86975 |
3550 |
735 |
226,9 |
168,1 |
214835 |
5846 |
203070 |
5526 |
|
HE 550 A |
166,0 |
540 |
300 |
12,5 |
24,0 |
27 |
211,8 |
111932 |
4146 |
810 |
245,6 |
178,1 |
277364 |
6849 |
260962 |
6444 |
|
HE 600 A |
178,0 |
590 |
300 |
13,0 |
25,0 |
27 |
226,5 |
141208 |
4787 |
885 |
264,9 |
188,2 |
351094 |
7934 |
328845 |
7432 |
|
HE 650 A |
190,0 |
640 |
300 |
13,5 |
26,0 |
27 |
241,6 |
175178 |
5474 |
960 |
284,8 |
198,4 |
437085 |
9106 |
407594 |
8492 |
|
HE 700 A |
204,0 |
690 |
300 |
14,5 |
27,0 |
27 |
260,5 |
215301 |
6241 |
1035 |
310,5 |
210,5 |
540369 |
10442 |
500674 |
9675 |
|
HE 800 A |
224,0 |
790 |
300 |
15,0 |
28,0 |
30 |
285,8 |
303442 |
7682 |
1185 |
345,1 |
226,6 |
766266 |
12933 |
704636 |
11893 |
|
HE 900 A |
252,0 |
890 |
300 |
16,0 |
30,0 |
30 |
320,5 |
422075 |
9485 |
1335 |
391,7 |
249,3 |
1073596 |
16084 |
979600 |
14676 |
|
HE 1000 A |
272,0 |
990 |
300 |
16,5 |
31,0 |
30 |
346,8 |
553846 |
11189 |
1485 |
428,5 |
265,1 |
1417794 |
19095 |
1284378 |
17298 |
Turkish
English
